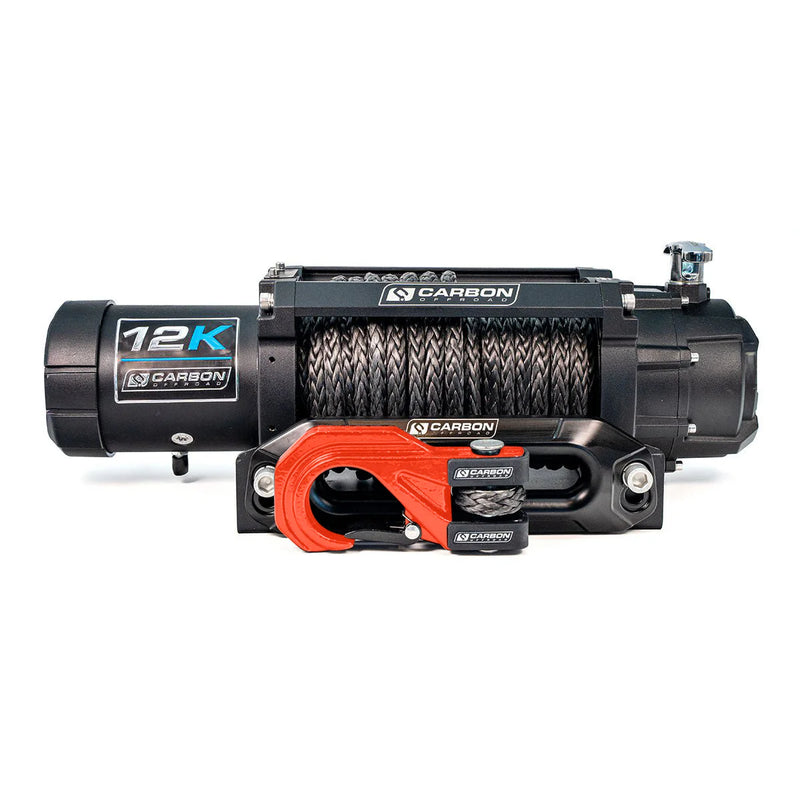

When you're axle-deep in a bog on the Cape York Peninsula, the last thing you want is a winch that lets you down.
The Carbon 12K V3X is built for exactly that moment. Lightweight, powerful, and loaded with every piece of gear you need to get unstuck, it's the winch trusted by thousands of Australian 4WDers from the Tasmanian mud bogs to the Kimberley river crossings.
The Lightest 12,000lb Winch in Its Class

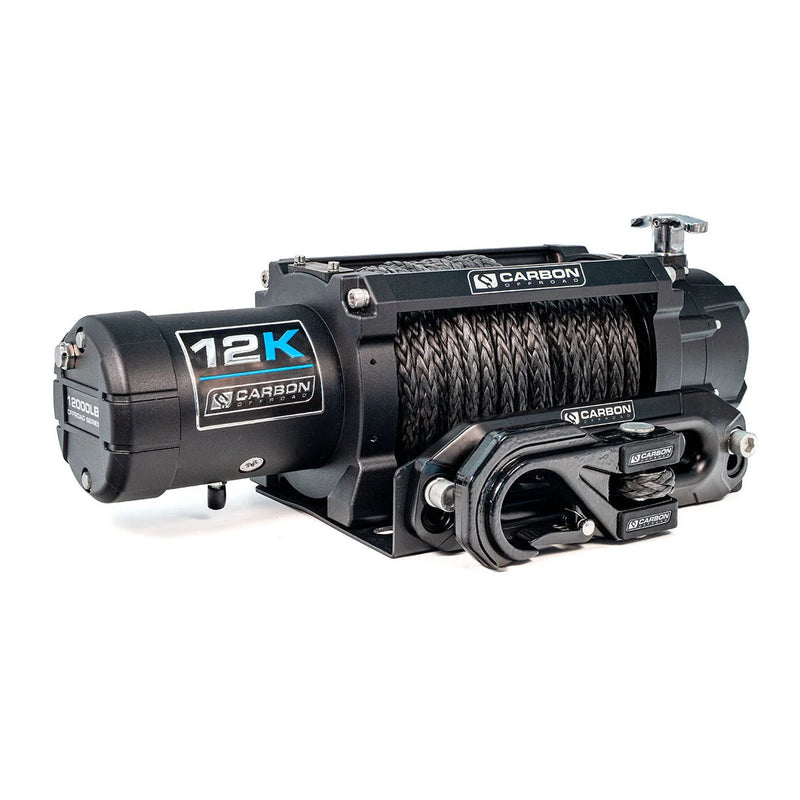

At just 19.7kg with the synthetic rope attached, the Carbon 12K V3X punches well above its weight without punishing your front suspension. Most 12,000lb winches will add 25–30kg to your bullbar. This one won't. Less weight up front means better steering, better fuel economy, and a safer rig, without sacrificing a single kilogram of pulling power.
12,000lb of Pulling Power. Zero Compromise.
A 12V DC 6HP series wound motor and 3-stage planetary gearbox with a 218:1 gear ratio deliver the kind of controlled, relentless pull that handles everything from sand dunes to steep, muddy track exits. Whether you're on the first layer of rope or the last, the Carbon 12K drags you out clean.
Built to Go Underwater Literally
IP68-rated, the Carbon 12K V3X is sealed against dust and submersion in freshwater up to 1.5m for 30 minutes. A breathable membrane motor breather handles heat expansion and contraction, so river crossings and muddy recoveries won't compromise a thing. This is why we back it with a 5-year water ingress warranty. Not many winch companies can say that.
Everything You Need. Nothing to Buy Separately.

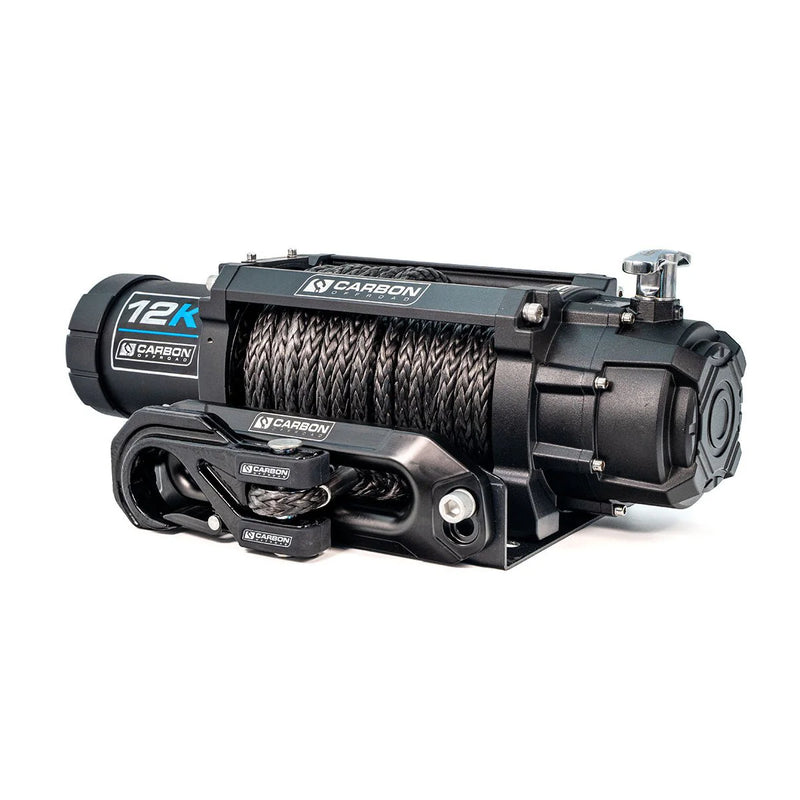

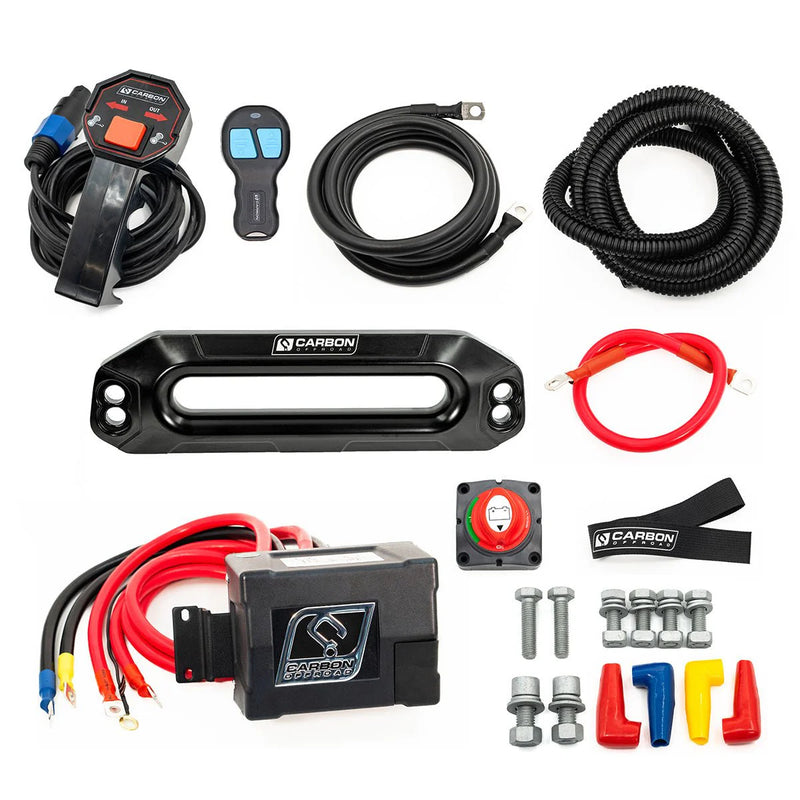

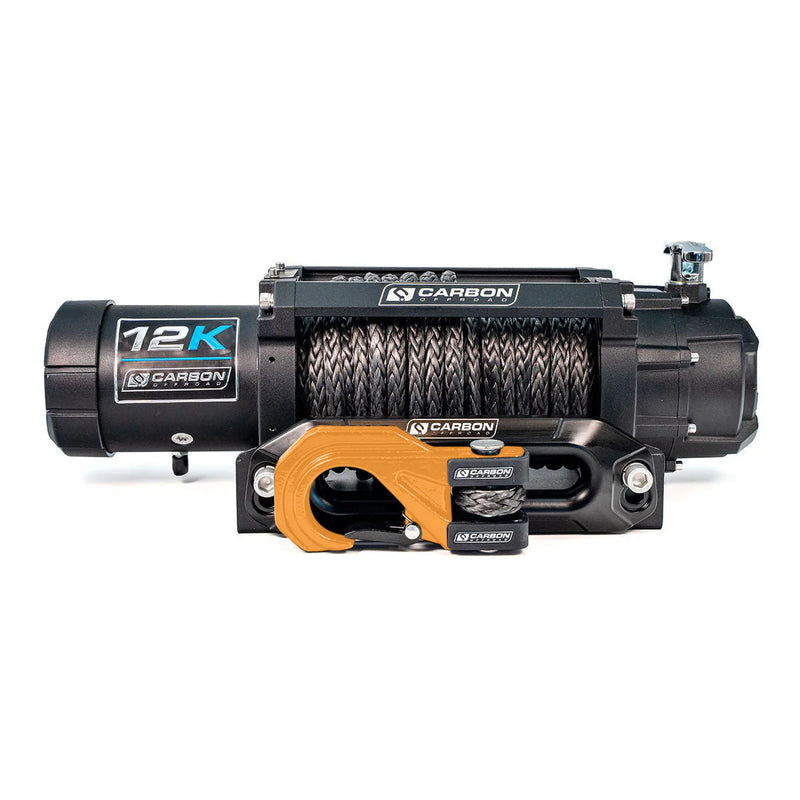

This is a complete kit. Open the box, bolt it on, and winch. Included in every Carbon 12K V3X:
- 1x Carbon 12K V3X Winch

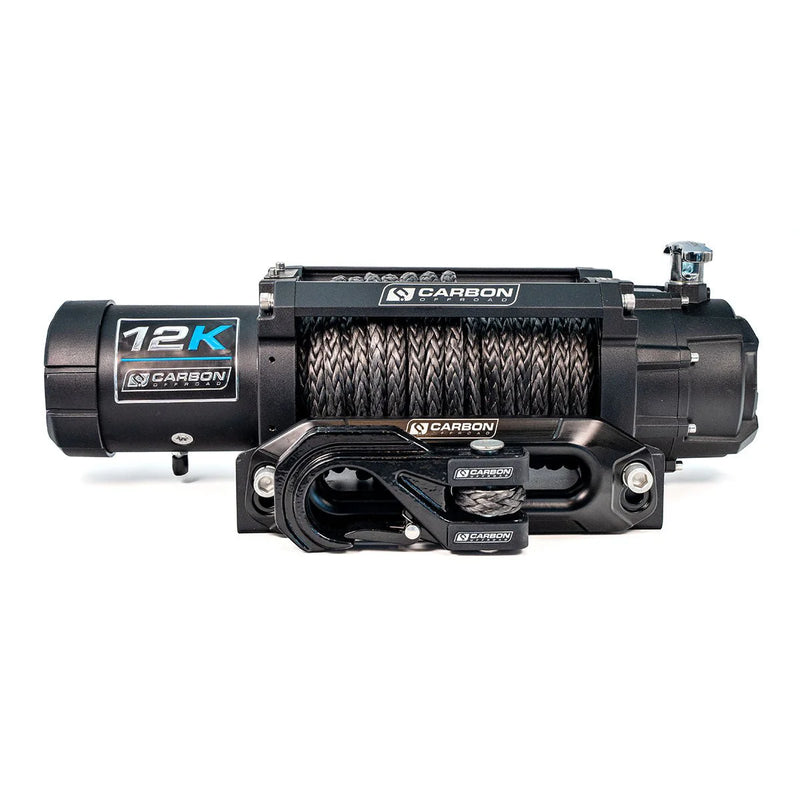

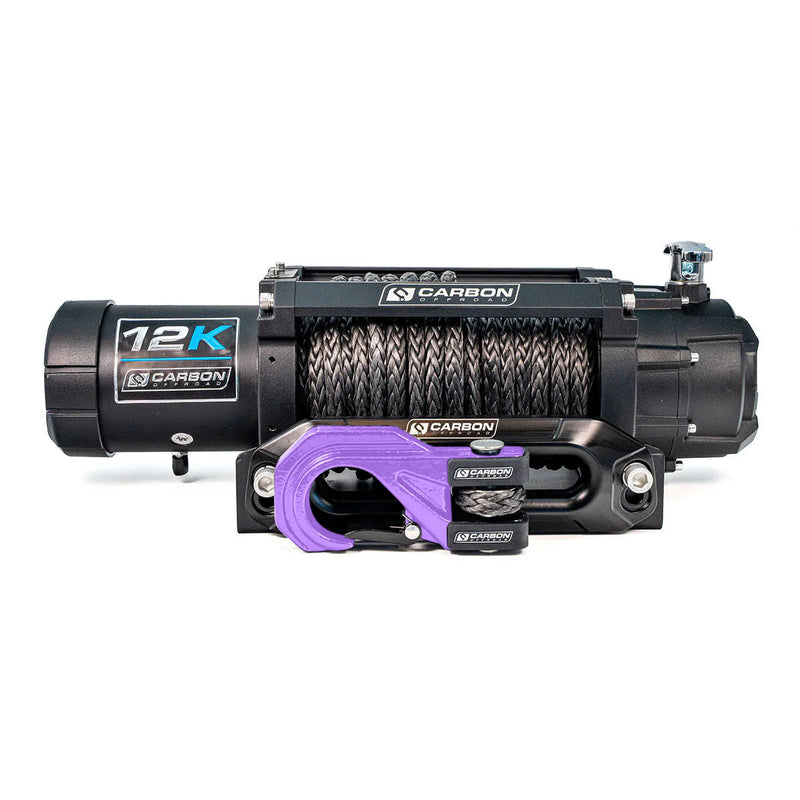

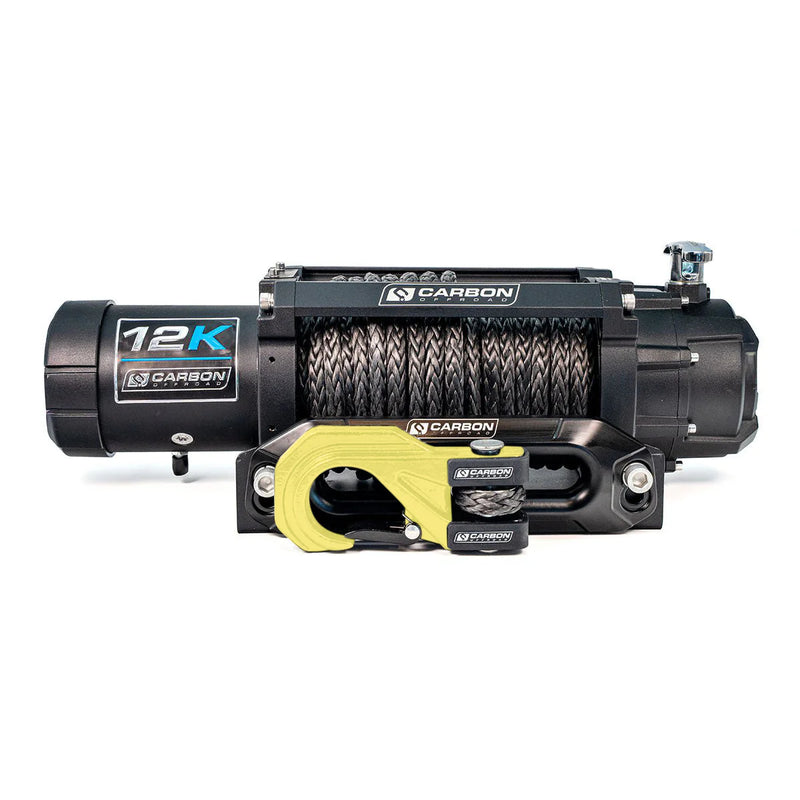

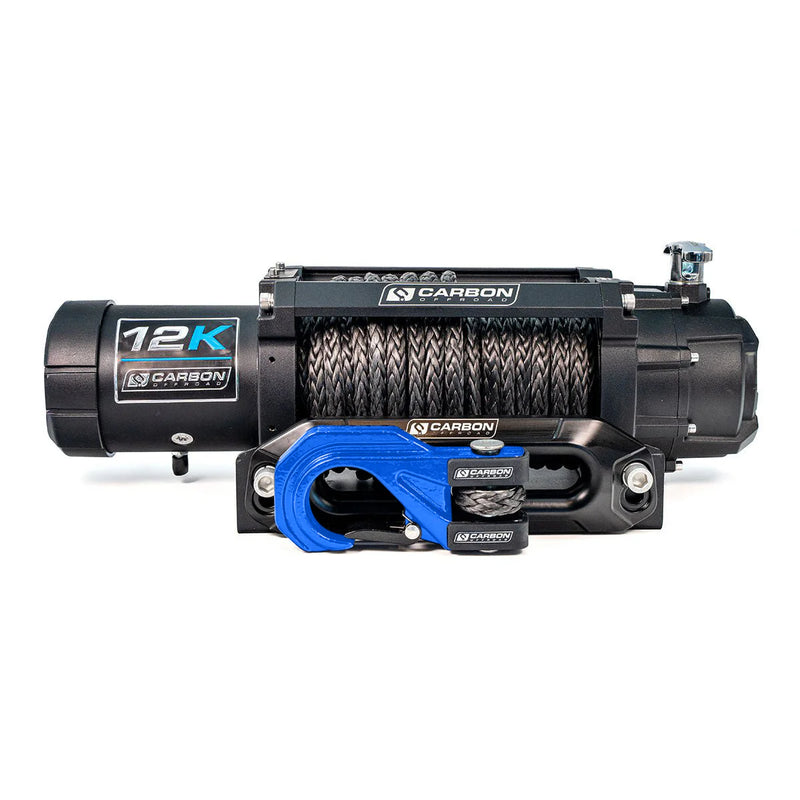

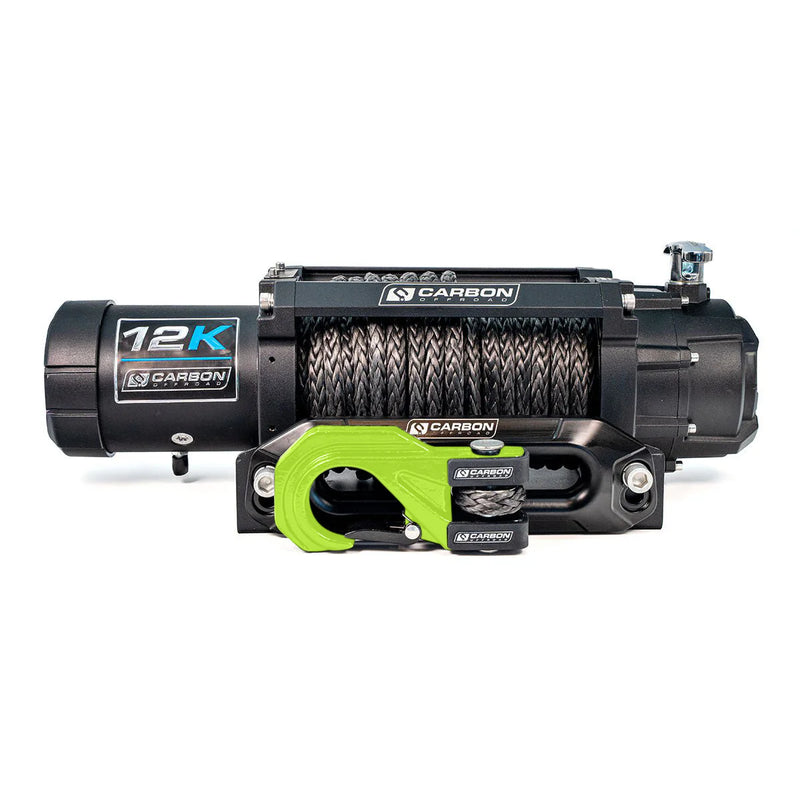

- 1x Carbon MegaPro Hook (your choice of colour)
- 1x 24m x 10mm Synthetic Rope
- 1x CNC Billet Alloy Black Anodised Fairlead
- 1x Wired Remote Control (3.7m lead)
- 1x Wireless Remote Control
- 1x Battery Isolator Switch & Cabling
- 1x Full Mounting Hardware Set
Operate from the Driver's Seat. Every Time.
Both a wired 3.7m remote and a fully wireless remote come standard — so whether you prefer a physical connection or the freedom to guide your recovery from exactly the right position, you're covered. No add-on purchases, no compromises.
Australia's Winch. Australia's Warranty.
Third-generation engineering. Years of real-world testing. Over 150 authorised dealers across Australia stocking and selling this unit. When something does need attention, you're talking to real 4WDers who use this gear, not an overseas call centre.
-
Lifetime Warranty — Geartrain, brake, and drum
-
5-Year Electrical Warranty — Motor and gearbox
-
5-Year Water Ingress Warranty — Motor and gearbox
Tech Specs Table:
| Specification |
Detail |
| Part Number |
CW-12KV3X |
| Rated Line Pull |
12,000lb (5,450kg) single-line |
| Motor |
12V DC, 6HP, Series Wound |
| Geartrain |
3-Stage Planetary |
| Gear Ratio |
218:1 |
| IP Rating |
IP68 (1.5m / 30 min, not during operation) |
| Clutch |
Rotating ring gear with manual pull & twist handle |
| Brake |
Full-load automatic (motor housing end plate) |
| Drum Dimensions |
63mm diameter × 224mm length |
| Mounting Bolt Pattern |
254mm × 114.3mm |
| Winch Dimensions |
538 × 158 × 187mm |
| Winch Weight |
19.7kg (with synthetic rope) |
| Full Kit Weight |
26.65kg |
| Min. Recommended Battery |
650 CCA |
| Rope |
24m × 10mm synthetic |
| Warranty – Geartrain |
Lifetime |
| Warranty – Electrical / Water Ingress |
5 Years |
FAQ Section:
Q: What vehicles does the Carbon 12K V3X suit?
The Carbon 12K V3X is sized for most modern dual-cab utes and mid-to-large SUVs, including HiLux, Ranger, Triton, Navara, D-Max, LC200, LC300, Prado, and more. The 254mm × 114.3mm bolt pattern fits the vast majority of aftermarket bull bars on the market. Check with your bull bar manufacturer if unsure.
Q: Is the synthetic rope included, or do I need to buy it separately?
Everything is included. The Carbon 12K V3X ships as a complete kit with 24m × 10mm synthetic rope, MegaPro Hook, CNC alloy fairlead, wired remote, wireless remote, isolator switch, cabling, and mounting hardware. It's ready to install straight out of the box.
Q: Why choose synthetic rope over wire rope?
Synthetic rope is safer, lighter, and easier to handle. If it breaks under load, it drops, it doesn't snap back like steel wire. It's also easier to rewind by hand during spooling and won't cause nasty wire splinter injuries when handling.
Q: What's the IP68 rating mean in practice?
IP68 means the winch is fully sealed against dust and can withstand submersion in up to 1.5m of fresh water for 30 minutes, when not in operation. This makes it safe for river crossings and general wet-weather use. For prolonged or extreme submersion, always rinse the winch with fresh water afterward.
Q: Can I use the Carbon 12K V3X with an air freespool upgrade?
Yes. The V3X is fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, which is specifically designed for the Carbon 12K and Scout Pro range.
Q: What battery do I need to run this winch?
Carbon recommends a minimum of 650 CCA for winching. At full rated load (12,000lb), the winch draws up to 340 amps, so a quality deep-cycle or AGM battery is strongly recommended, along with the included isolator switch.
Q: Does the winch come with both wired and wireless remotes?
Yes, both are included as standard. The 3.7m wired remote gives you a reliable physical connection, while the wireless remote gives you the freedom to operate from wherever you need to be during a recovery.
Q: What warranty does the Carbon 12K V3X carry?
The geartrain, brake, and drum are covered by a Limited Lifetime Mechanical Warranty. The motor and gearbox carry a 5-Year Electrical Warranty and 5-Year Water Ingress Warranty. All warranty support is handled by the Australian Carbon Offroad team.
Q: Can I get spare parts if I need them?
Yes. Carbon Offroad maintains a dedicated range of 12K winch spare parts, available separately. This means your winch can be serviced and repaired rather than replaced.
